Wholesale Door panel straightener prevents wardrobe deformation. One door to top straightener effectively straightens deformed door panels Suppliers, Factory
1 / 5
Wholesale Door panel straightener prevents wardrobe deformation. One door to top straightener effectively straightens deformed door panels Suppliers, Factory

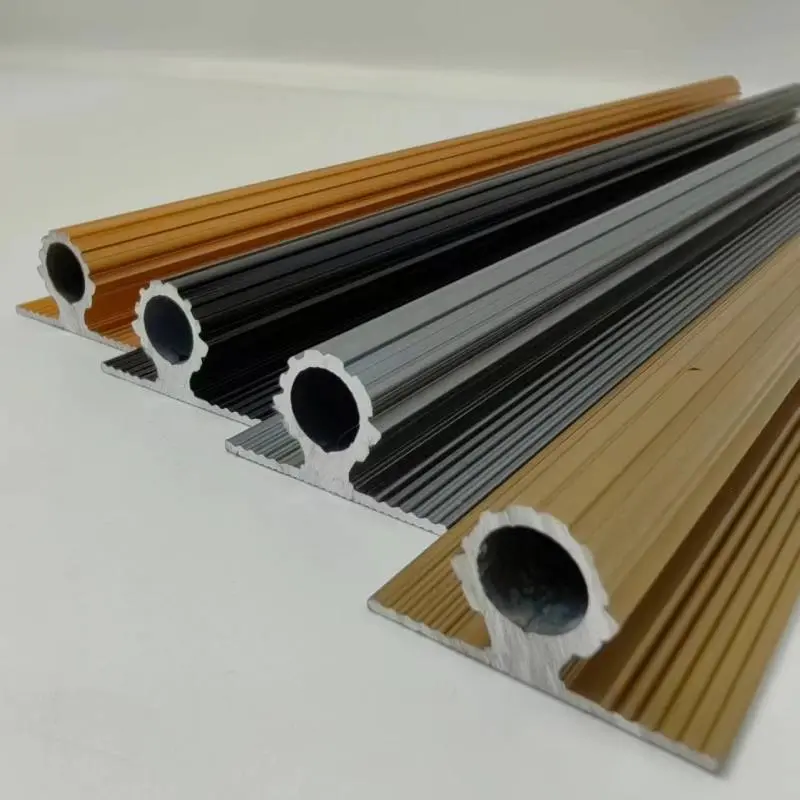

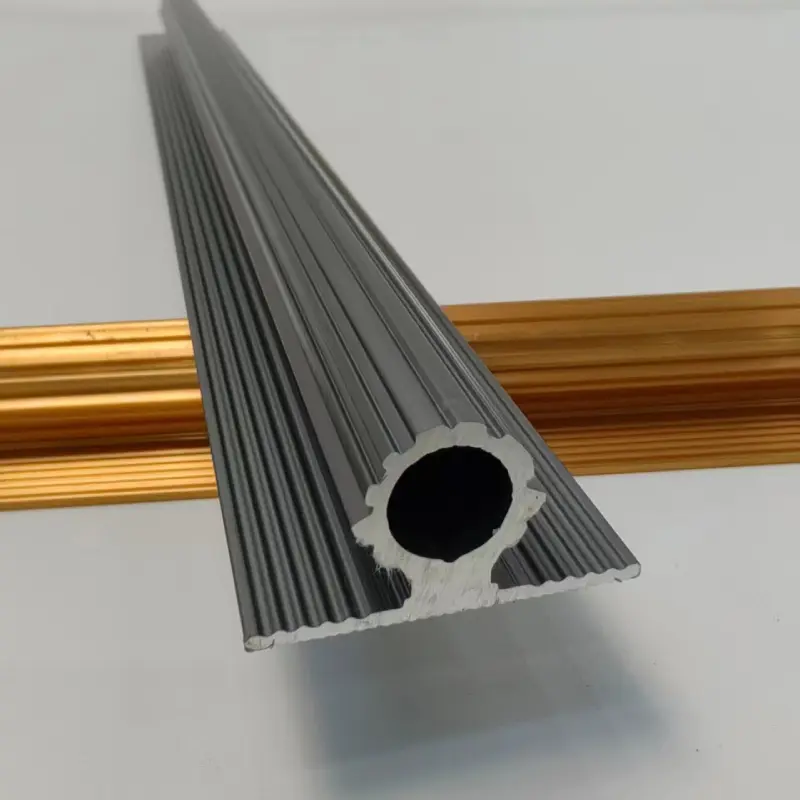

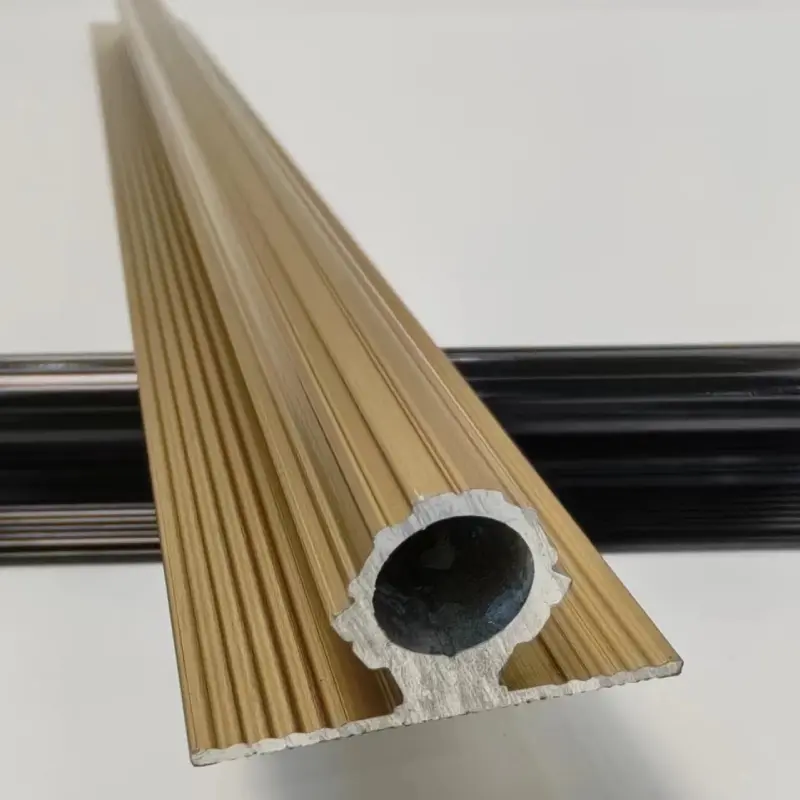

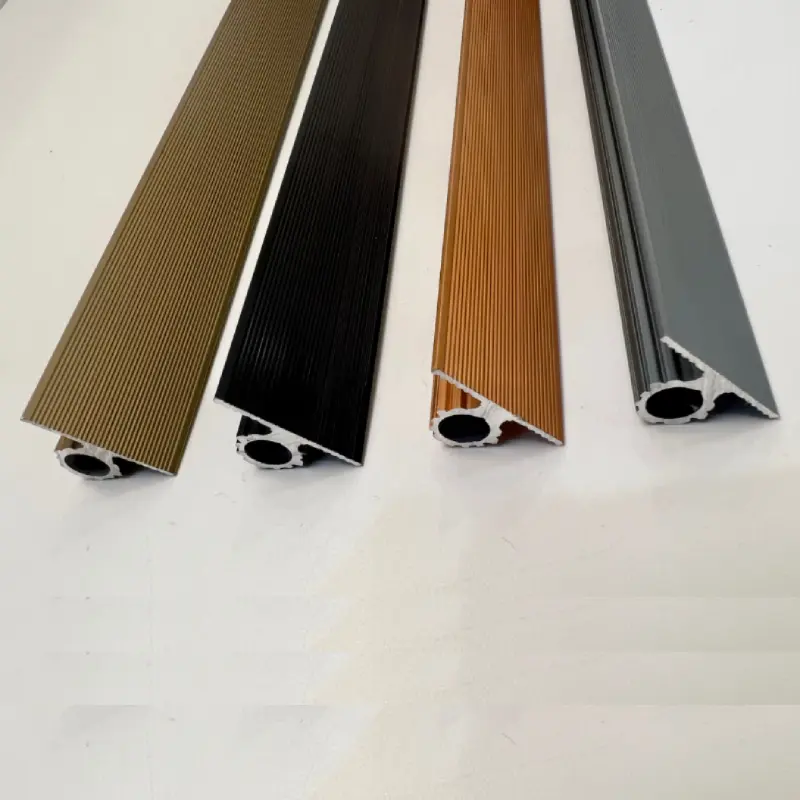

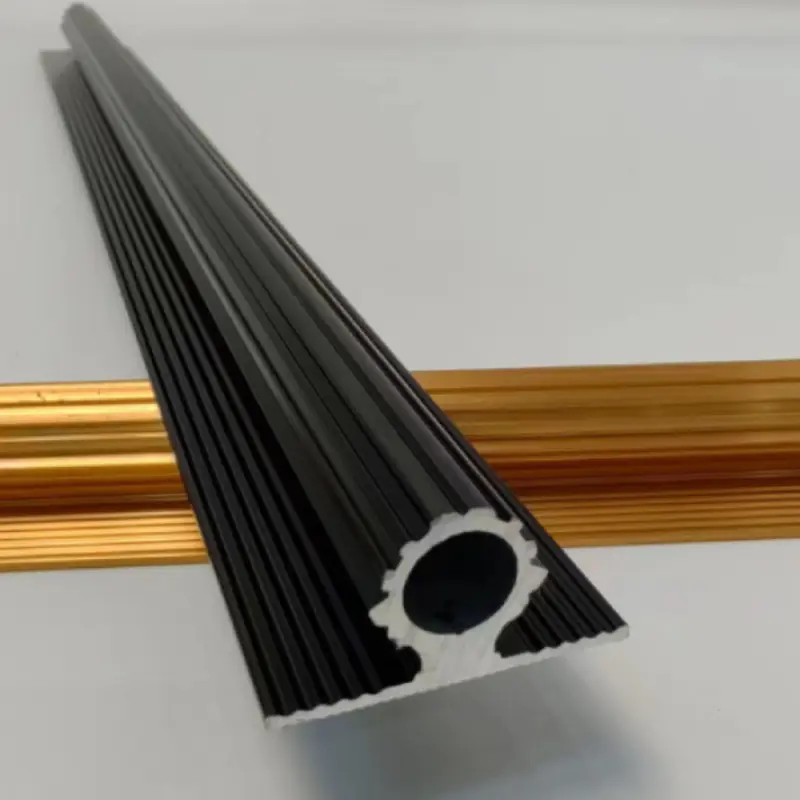

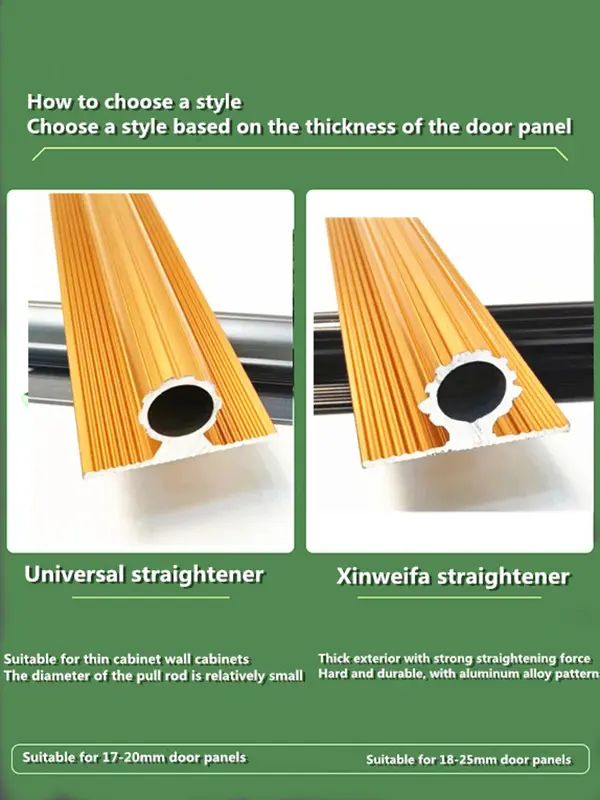

Product structure: Made of high-quality aluminum material, with a built-in 6.5 iron core. An adjustment screw is installed on the straightener to provide support for the wooden board, reducing its deformation and warping. When the door panel deforms, the adjustment screw on the straightener can straighten the door panel.
The straightener is mutually reinforcing through the action of force, utilizing the elasticity of the metal itself to form an opposite effect to the cabinet door. Simply put, if the door panel is bent inward, the straightener will bend outward, and vice versa, which can ensure a straight effect of the cabinet door.
Principle

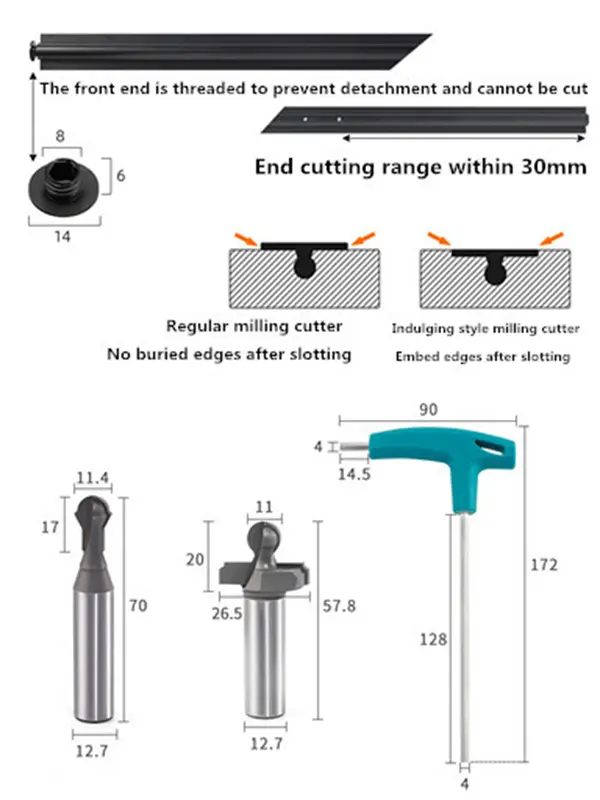

The installation principle of the straightener: a special milling cutter is required, and the door is first slotted; Make the groove and then install the aluminum alloy straightening strip. The straightness of the plate can be adjusted according to the bending of the plate, or a special wrench can be used to adjust the straightness of the plate: the invisible straightening device is embedded in the door panel, and the hexagonal key is turned clockwise to adjust it. When the two ends of the door panel deform outward, the hexagonal key is turned counterclockwise to adjust it. The hexagonal key is used to adjust the deformation of the door panel.
How high the door panel needs to be equipped with a straightener
Details
When do I need to install a straightener
The specific configuration method is as follows:
Door panel straightener -1500: The height dimension range corresponding to the straightener is H1600-1850mm
Door panel straightener 1800: The height dimension range corresponding to the straightener is H1850-2200mm
Door panel straightener 2100: The height dimension range corresponding to the straightener is H2200-2500mm
Door panel straightener 2440: The height dimension range corresponding to the straightener is H2500-2800mm
Door panel straightener 2780: The range of height dimensions corresponding to the straightener is H2800-3000mm
Attention:
When installing a straightener on the door panel, the inner layer of the door panel needs to be retracted by 10mm relative to the side panel.
Parameter
Product Name:
Weifa New
Material:
Aluminum+Iron

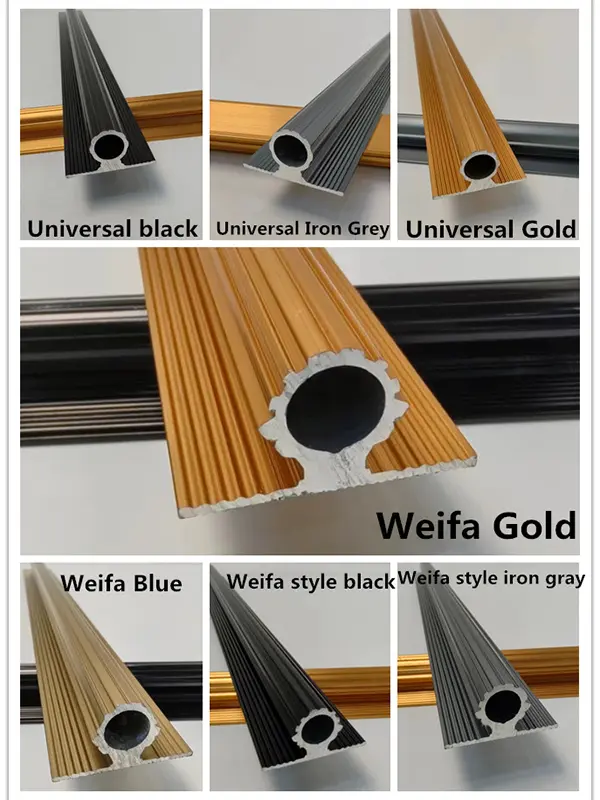

Colors:
gold, iron gray, turquoise gold, black
Quantity:
30pcs
Scope of Application:
Cabinet doors, wardrobe doors
Style:
Modern and minimalist
Exhibition

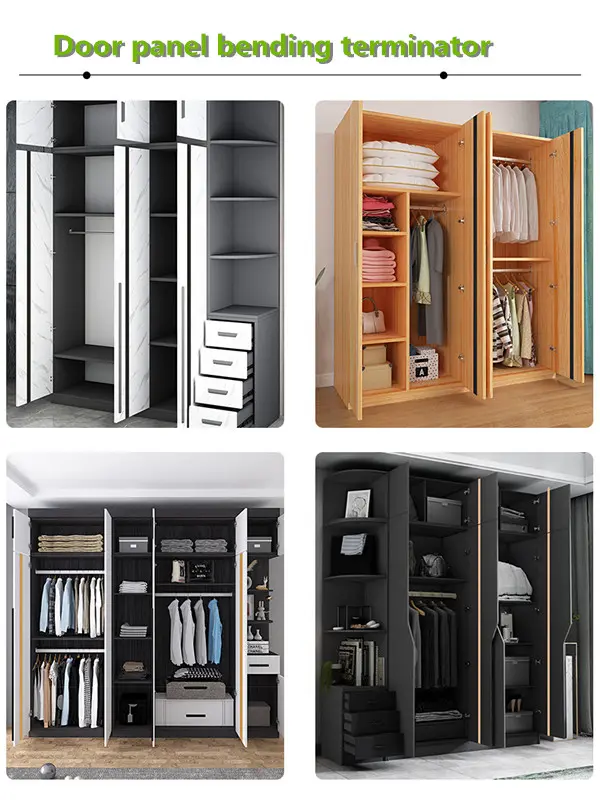

Application
Frequently Asked Questions
How does the cabinet door straightener prevent bending?
The straightener utilizes the elasticity of the metal to counter the deformation forces of the cabinet door. If the door panel bends inward, the straightener pushes outward, and if it bends outward, the straightener pulls inward, keeping the door straight.
What is the installation process for this straightening device?
Installation requires slotting the door panel first using a special milling cutter. Once the groove is made, the aluminum alloy straightening strip is embedded into the door panel.
How do I adjust the straightness after installation?
You can adjust the plate straightness using a special wrench. Turn the hexagonal key clockwise to adjust standard alignment, or counterclockwise if the two ends of the door panel deform outward.
How do I choose the correct straightener size for my door height?
Choose the model based on your door height: Model 1500 fits heights of H1600-1850mm; Model 1800 fits H1850-2200mm; Model 2100 fits H2200-2500mm; Model 2440 fits H2500-2800mm; and Model 2780 fits H2800-3000mm.
Is there any special spacing requirement during installation?
Yes, when installing the straightener on the door panel, you must ensure that the inner layer of the door panel is retracted by 10mm relative to the side panel.
What are the materials and styles of this product?
The straightener is constructed from high-quality Aluminum and Iron. It features a modern and minimalist style, suitable for both cabinet doors and wardrobe doors, and comes in gold, iron gray, turquoise gold, and black colors.
